GSA CNC-1500HV
Have one to sell?
ConditionNew
New

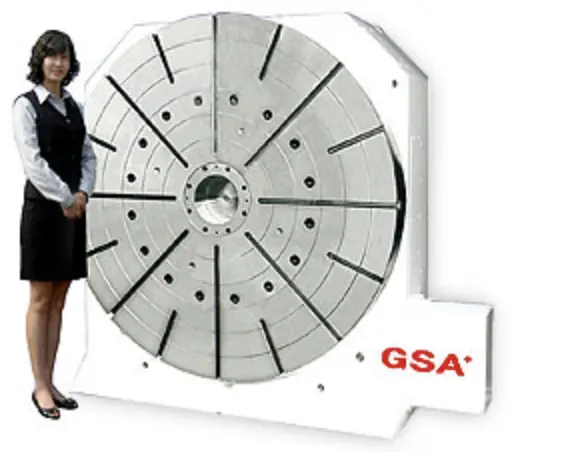

Table size form size 1,000mm to size 2,000mm can be manufactured in both Vertical/Horizontal position. With high accuracy and high loading capacity which are suitable for heavy machining and metrology applications.
High Heavy loading capacity axial-radial Roller Bearings are incorporated to provide high rigidity.
All units in Tables are manufactured from high quality materials and workmanship. Every Table has Running/Accuracy testing for at least 48 performance confidence.
Can be designed by customers' drawings Saddle.
0.001 degree increment is standard. Indexing accuracy can be chosen by customers' request. 5 sec. or 10 sec. (encoder is required.)
Table Dia (mm) 1500
Center Height in Vertical (mm) 900
Table Height in Horizontal (mm) 700
Over all Height in Vertical
Without Motor Cover (mm) 1695
Center Holes (mm) 200x70
Width of T-slot (mm) 22H7
Width of Guide Block (mm) 28h7
Servo motor type
MELDAS HF-453S
FANUC α30 i
SIEMENS 1FK7103
HEIDENHAIN QSY190D
Gear Ratio 1:720
Min. Indexing (degree) 0.001°
Max. R.P.M. (rpm) (motor : 2000 / rpm) 2.78
Hydro. clamp force (kg•m) (P:35kg / cm2) 1500
Indexing Accuracy Class (sec.) A 15"
Indexing Accuracy (sec.)
Encoder ±5"
Repeatability (sec.)
Encoder 4"
Max. Machining Force (kg•m) 600
N.W. (kgs) 6000
Max. Load
Vertical W=3000 kg
Horizontal W=8000 kg
Max. Radial Load
F=7000 kg
FxL=1500 kg•m
FxL=3000 kg•m
