GSA CNC-1000HV
Have one to sell?
ConditionNew
New

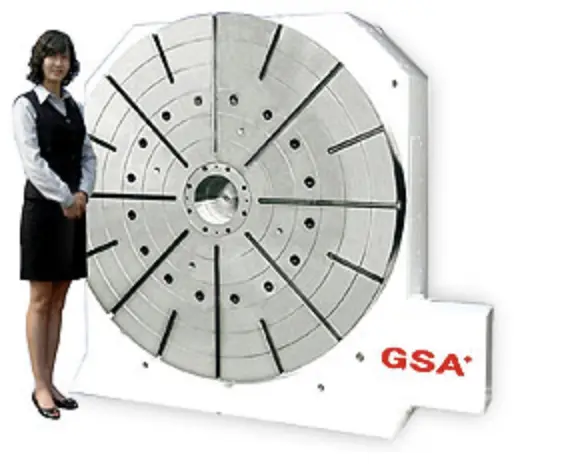

Table size form size 1,000mm to size 2,000mm can be manufactured in both Vertical/Horizontal position. With high accuracy and high loading capacity which are suitable for heavy machining and metrology applications.
High Heavy loading capacity axial-radial Roller Bearings are incorporated to provide high rigidity.
All units in Tables are manufactured from high quality materials and workmanship. Every Table has Running/Accuracy testing for at least 48 performance confidence.
Can be designed by customers' drawings Saddle.
0.001 degree increment is standard. Indexing accuracy can be chosen by customers' request. 5 sec. or 10 sec. (encoder is required.)
Table Dia (mm) 1000
Center Height in Vertical (mm) 650
Table Height in Horizontal (mm) 530
Over all Height in Vertical
Without Motor Cover (mm) 1175
Center Holes (mm) 100x60
Width of T-slot (mm) 22H7
Width of Guide Block (mm) 22h7
Servo motor type
MELDAS HF-453S
FANUC α30 i
SIEMENS 1FK7103
HEIDENHAIN QSY190D
Gear Ratio 1:360
Min. Indexing (degree) 0.001°
Max. R.P.M. (rpm) (motor : 2000 / rpm) 5.56
Hydro. clamp force (kg•m) (P:35kg / cm2) 1100
Indexing Accuracy Class (sec.) A 15"
High Accuracy Rotary Table Refer to P39 chart 2
Indexing Accuracy (sec.)
Encoder ±5"
Repeatability (sec.)
Encoder 4"
Max. Machining Force (kg•m) 500
N.W. (kgs) 2500
Max. Load
Vertical W=1500 kg
Horizontal W=3500 kg
Max. Radial Load
F=5000 kg
FxL=1100 kg•m
FxL=2000 kg•m
