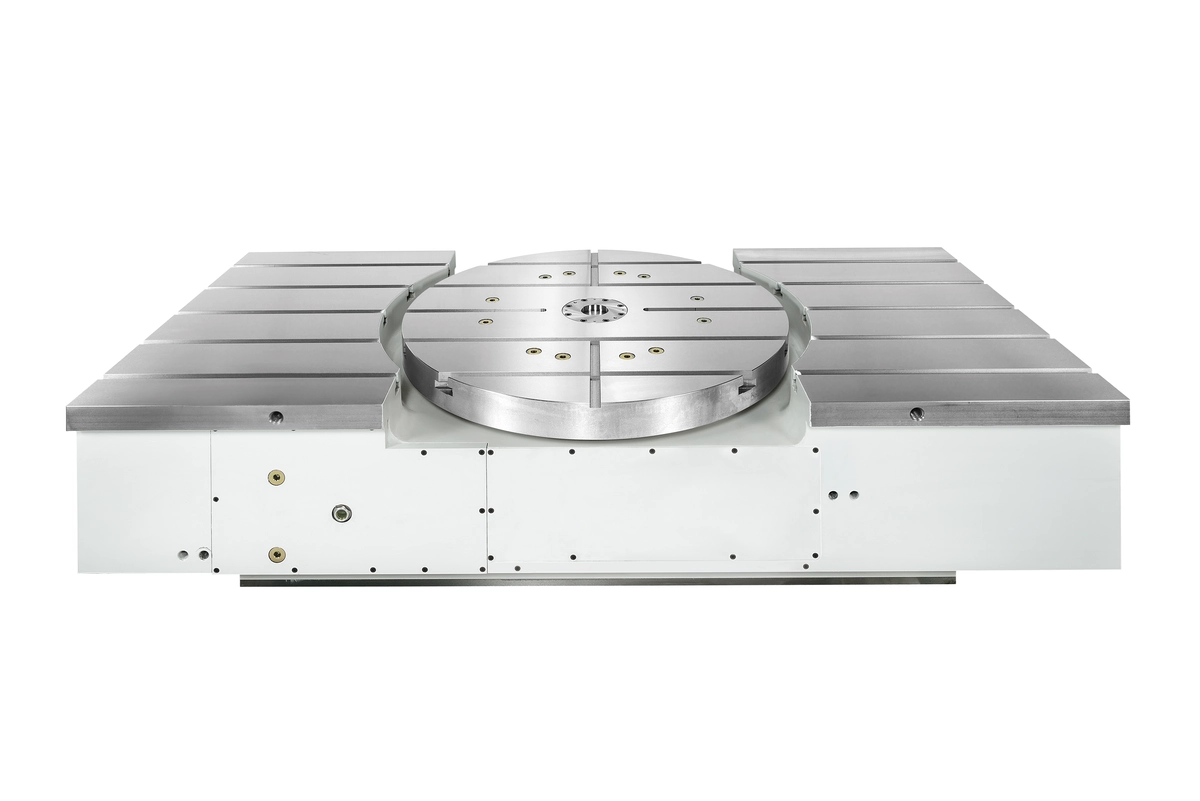

GSA HRT-1000
Have one to sell?
ConditionNew
New
Suitable for Horizontal Machining Center, floor type boring machine.
For both indexing & simultaneous machine.
Hi-Accuracy, Adapting a special anti-wearing alloy of bronze/nickel double-lead
worm wheel and hardened steel worm screw ensure long term indexing accuracy.
Could be manufactured according to customers' designing and interface of machine Saddle.
Hydraulic Clamping, high rigid brake structure for heavy cutting.
Table size from size 400mm to 2,500mm or manufactured according to customer's
requirement, high loading/accuracy design also available suitable for heavy machining and metrology applications.
Build-in hydraulic ports system suitable for Special Machine of Horizontal machining.
Center and Automobile/Motorbike Industrial.
All units in Tables are manufactured from high quality materials and workmanship.
Every Table has Running/Accuracy testing for at least 48 hours.
All electrical parts are imported from Japan/Germany for performance confidence.
Random dividing 0.001 degrees, Indexing Accuracy according to customer’s requirement 6 sec, 10 sec. or higher indexing accuracy. (encoder is required)
Table Size (mm) ø1000 □1000X1000
T-slots size (mm) 22
Table Swing Dia. (mm) ○1000 □1300
Total Height (mm) 530
Max. Loading (kgs) 5,000
Indexing Accuracy (sec.) A6" B10"
Repeatability (sec.) 4"
Clamping Force (kgs) 5,000
Machining Torque (kg/m) 300
Parallelism Of Table
Top and Frame Bottom (mm) 0.01/300
Gear Ratio 1/360
Servo motor type FANUC α22i
