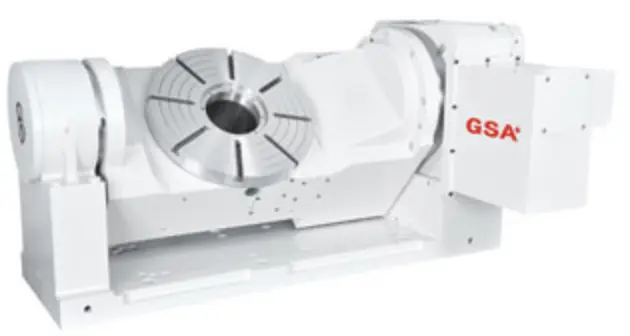

GSA CNCT-800
Have one to sell?
ConditionNew
New
Dual-Lead worm wheel and worm shaft design with wear-resisting material suitable for 5 axes simultaneous machining.
Low center height profile design with wide range machining space.
Optional balance pistons provides heavy cutting application and long-term using.
Table Dia (mm) 800
Table center Height in Vertical (mm) 650
Over all Height in Vertical (mm) 1050
Thru-Hole Dia (mm) 254H7
Width of T-slot (mm) 20H7
Width of Guide Block (mm) 22h7
Servo motor type Rotating Tilting
MELDAS HF-354S HF-453S
FANUC α22 i α30 i
SIEMENS 1FK7101 1FK7103
HEIDENHAIN QSY190C QSY190D
Gear Ratio 1:180 1:720
Min. Increment(degree) 0.001° 0.001°
Max. R.P.M. (rpm)
(motor : 2000 / rpm) 11.1 2.7
Tilting degree -120°~120°
Rotation axis
Pneu. clamp force(kg•m)(P:5kg / cm2) -
Hydro. clamp force(kg•m)(P:20kg / cm2) 450
Indexing Accuracy (sec.) 15"
Repeatability (sec.) 4"
Tilting axis
Pneumatic/hydraulic clamping force(kg•m)-/1250
Indexing Accuracy (sec.) 30"
N.W (kgs) 4850
Max. Load
Vertical W=600 kg
Horizontal W=1000 kg
Max. Radial Load
F=2600 kg
FxL=1250 kg•m
FxL=460 kg•m
Max. Working Inertia 1000kg•cm•sec2
