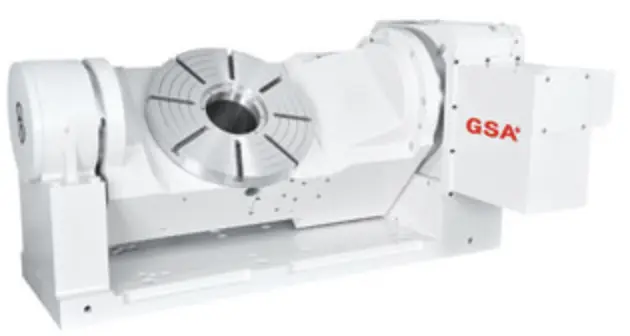

GSA CNCT-320RS
Have one to sell?
ConditionNew
New
Dual-Lead worm wheel and worm shaft design with wear-resisting material suitable for 5 axes simultaneous machining.
Low center height profile design with wide range machining space.
Optional balance pistons provides heavy cutting application and long-term using.
Table Dia (mm) 320/350
Table center Height in Vertical (mm) 375
Over all Height in Vertical (mm) 675
Thru-Hole Dia (mm) 145H7
Width of T-slot (mm) 14H7
Width of Guide Block (mm) 18h7
Servo motor type Rotating Tilting
MELDAS HF-154T HF-354S
FANUC α8 i α22 i
SIEMENS 1FK7063 1FK7101
HEIDENHAIN QSY116E QSY155F
Gear Ratio 1:180 1:180
Min. Increment(degree) 0.001° 0.001°
Max. R.P.M. (rpm)
(motor : 2000 / rpm) 11.1 11.1
Tilting degree -120°~120°
Rotation axis
Pneu. clamp force(kg•m)(P:5kg / cm2) 71
Hydro. clamp force(kg•m)(P:20kg / cm2) 142
Indexing Accuracy (sec.) 15"
Repeatability (sec.) 4"
Tilting axis
Pneumatic/hydraulic clamping force(kg•m)95/190
Indexing Accuracy (sec.) 30"
N.W (kgs) 1050
Max. Load
Vertical W=100 kg
Horizontal W=200 kg
Max. Radial Load
F=1500 kg
FxL=190 kg•m
FxL=200 kg•m
Max. Working Inertia 26kg•cm•sec2
