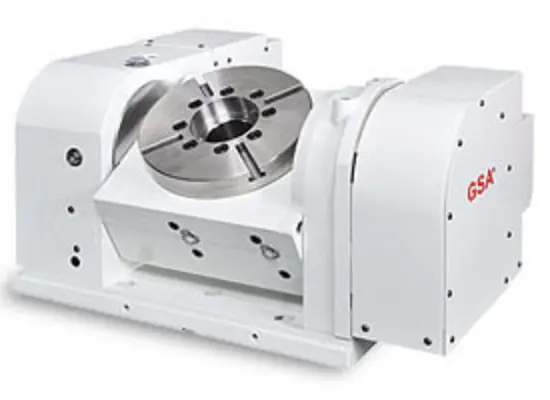

GSA CNCT-320
Have one to sell?
ConditionNew
New
Easy Installation Easy Operation.
Compact Deign Wide Machine Range.
Even Approx. One Meter Table M/C Could be Installed.
To match 5 axes M/C for continuing machining, the tilting axis could be connected the M-code by using our single axis AC/DC/Stepping servo controller.
Table Dia (mm) 320
Table center Height in Vertical (mm) 255
Over all Height in Vertical (mm) 425
Thru-Hole Dia (mm) 110H7
Width of T-slot (mm) 14H7
Width of Guide Block (mm) 18h7
Servo motor type Rotating Tilting
MELDAS HF-154T HF-204S
FANUC α8 i α12 i
SIEMENS 1FK7063 1FK7083
HEIDENHAIN QSY116E QSY155B
Gear Ratio 1:180 1:180
Min. Increment(degree) 0.001° 0.001°
Max. R.P.M. (rpm)
(motor : 2000 / rpm) 11.1 11.1
Tilting degree -110°~110°
Rotation axis
Pneu. clamp force(kg•m)(P:5kg / cm2) 71
Hydro. clamp force(kg•m)(P:20kg / cm2) 142
Indexing Accuracy (sec.) 15"
Repeatability (sec.) 4"
Tilting axis
Pneumatic/hydraulic clamping force(kg•m)71/142
Indexing Accuracy (sec.) 30"
N.W (kgs) 450
Max. Load
Vertical W=100 kg
Horizontal W=200 kg
Max. Radial Load
F=1500 kg
FxL=142 kg•m
FxL=200 kg•m
Max. Working Inertia 26kg•cm•sec2
