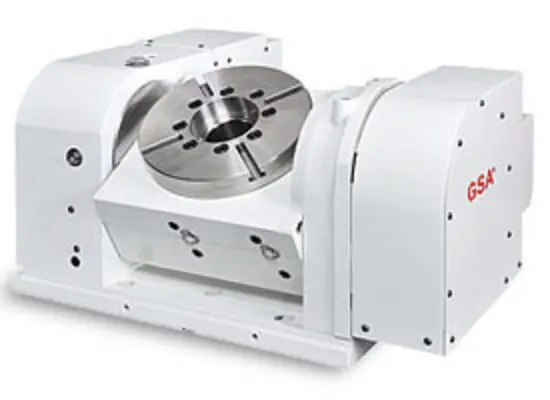

GSA CNCT-200
Have one to sell?
ConditionNew
New
Easy Installation Easy Operation.
Compact Deign Wide Machine Range.
Even Approx. One Meter Table M/C Could be Installed.
To match 5 axes M/C for continuing machining, the tilting axis could be connected the M-code by using our single axis AC/DC/Stepping servo controller.
Table Dia (mm) 200
Table center Height in Vertical (mm) 195
Over all Height in Vertical (mm) 360
Thru-Hole Dia (mm) 35H7
Width of T-slot (mm) 12H7
Width of Guide Block (mm) 18h7
Servo motor type Rotating Tilting
MELDAS HF-104T HF-154T
FANUC α4 i α8 i
SIEMENS 1FK7060 1FK7063
HEIDENHAIN QSY116C QSY116E
Gear Ratio 1:90 1:180
Min. Increment(degree) 0.001° 0.001°
Max. R.P.M. (rpm) (motor : 2000 / rpm) 22.2 11.1
Tilting degree -110°~110°
Rotation axis
Pneu. clamp force(kg•m)(P:5kg / cm2) 25
Hydro. clamp force(kg•m)(P:20kg / cm2) 50
Indexing Accuracy (sec.) 20"
Repeatability (sec.) 4"
Tilting axis
Pneumatic/hydraulic clamping force(kg•m)25/50
Indexing Accuracy (sec.) 50"
N.W (kgs) 240
Max. Load
Vertical W=50 kg
Horizontal W=100 kg
Max. Radial Load
F=500 kg
FxL=50 kg•m
FxL=102 kg•m
Max. Working Inertia 6kg•cm•sec2
