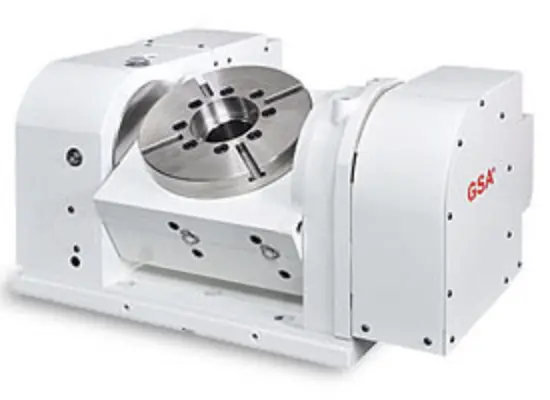

GSA CNCT-100
Have one to sell?
ConditionNew
New
Easy Installation Easy Operation.
Compact Deign Wide Machinine Range.
Even Approx. One Meter Table M/C Could be Installed.
To match 5 axes M/C for continuing machining, the tilting axis could be connected the M-code by using our single axis AC/DC/Stepping servo controller.
Table Dia (mm) 120
Table center Height in Vertical (mm) 150
Over all Height in Vertical (mm) 235
Thru-Hole Dia (mm) 30H7
Width of T-slot (mm) 10H7
Width of Guide Block (mm) 14h7
Servo motor type Rotating Tilting
MELDAS HF-75T HF-75T
FANUC α2 i α2 i
SIEMENS 1FK7042 1FK7042
HEIDENHAIN QSY96G QSY96G
Gear Ratio 1:72 1:120
Min. Increment(degree) 0.001° 0.001°
Max. R.P.M. (rpm)
(motor : 2000 / rpm) 27.8 16.7
Tilting degree -20°~120°
Rotation axis
Pneu. clamp force (kg•m)(P:5kg / cm2) 12
Hydro. clamp force (kg•m)(P:20kg / cm2) 24
Indexing Accuracy (sec.) 30"
Repeatability (sec.) 4"
Tilting axis
Pneumatic/hydraulic clamping force(kg•m) 12/24
Indexing Accuracy (sec.) 60"
N.W (kgs) 105
Max. Load
Vertical W=20 kg
Horizontal W=35 kg
Max. Radial Load
F=400 kg
FxL=24 kg•m
FxL=30 kg•m
Max. Working Inertia 0.87kg•cm•sec2
