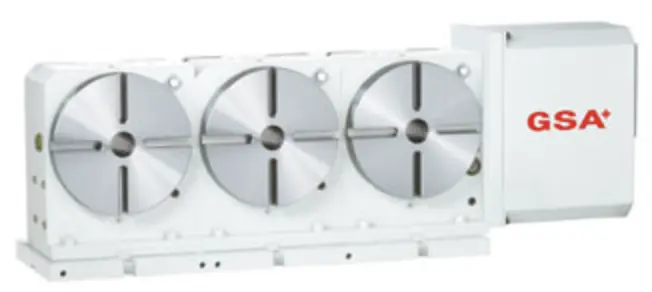

GSA CNC-200R-3W
Have one to sell?
ConditionNew
New
Double productivity, decreasing machining-time and cost.
Multi-Points pneumatic brake system offers superior clamp torque, insures smooth machining without deflection under a heavy load.
Increasing machining speed, reduce the time on rotating ATC and workpiece loading-unloading.
Gear Ratio 90:1
Min. Increment (degree) 0.001°
Max. R.P.M. (rpm) (motor : 2000 / rpm) 22.2
Pneu. clamp force (kg•m) (P:5kg / cm2) 25
Hydro. clamp force (kg•m) (P:20kg / cm2) 50
Indexing Accuracy Class (sec.) 20"
Repeatability (sec.)
Unidirectional 4"
Bidirectional 8"
Max. Machine Force (kg•m) 23
N. W. (kgs) 270
Max. Radial Load
W=1100 kg
FxL=50 kg•m
FxL=100 kg•m
