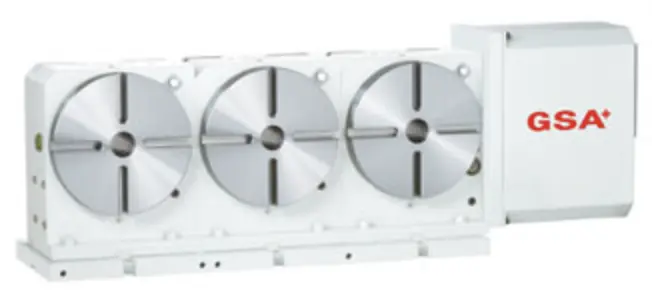

GSA CNC-200R-3W(2W)
Have one to sell?
ConditionNew
New
Double productivity, decreasing machining-time and cost.
Multi-Points pneumatic brake system offers superior clamp torque, insures smooth machining without deflection under a heavy load.
Increasing machining speed, reduce the time on rotating ATC and workpiece loading-unloading.
Table Dia (mm / inch) 200 / 7.87
Center Height in Vertical (mm / inch) 190 / 7.48
Table Height in Horizontal (mm / inch) 290 / 11.42
Over all Height in Vertical
Without Motor Cover (mm / inch) 315 / 12.40
Thru-Hole Dia (mm / inch) 35H7/ 1.38H7
Width of T-slot (mm / inch) 12H7/ 0.47H7
Width of Guide Block (mm / inch) 18h7/ 0.71H7
Servo motor type
MELDAS SIEMENS HF-154T 1FK7063
FANUC HEIDENHAIN α8 i QSY116C
Max. Load
Vertical W=125 kg
Horizontal W=250 kg
