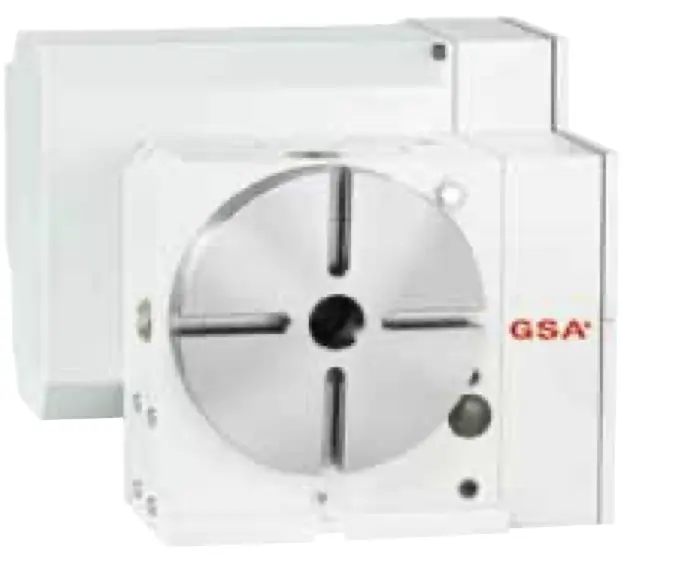

GSA CNC-200RB

Table Dia                       (mm / inch) 200 / 7.84
Center Height in Vertical       (mm / inch) 160 / 6.3
Over all Height in Vertical     (mm / inch) 325 / 12.5
Thru-Hole Dia                   (mm / inch) 35H7/ 1.38H7
Width of T-slot                 (mm / inch) 12H7/ 0.47H7
Width of Guide Block            (mm / inch) 18h7/ 0.71h7
Servo motor type
        MELDAS     HF-104T
FANUC     α4 i
SIEMENS     1FK7060
HEIDENHAIN  QSY116C
Gear Ratio         1:90
Min. Indexing                   (degree) 0.001°
Max. R.P.M. (rpm)               (motor : 2000 / rpm) 22.2
Pneu. clamp force (kg•m)        (P:5kg / cm2) 25
Hydro. clamp force (kg•m)       (P:20kg / cm2) 50
Indexing Accuracy Class         (sec.) A 20"
High Accuracy Rotary Table Refer to P39 chart 2
Repeatability                   (sec.)
        Unidirectional         4"
Bidirectional         8"
Max. Machining Force            (kg•m)          23
N.W.                            (kgs)          84
Max. Load
        Vertical          W=125 kg
Horizontal          W=250 kg

Max. Radial Load
        F=1100 kg
FxL=50 kg•m
FxL=100 kg•m
