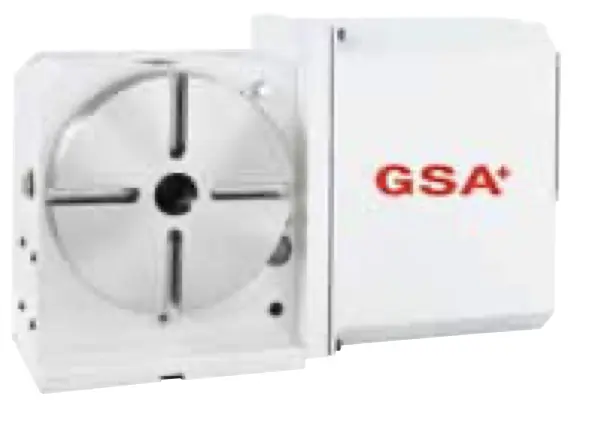

GSA CNC-200R
Have one to sell?
ConditionNew
New
A combination of high precision bronze / nickel worm wheel and case hardened steel worm screw ensures long term indexing accuracy.
Dual lead worm wheel/worm shaft which allowable easy backlash
adjustmen.
Double bearing design suitable for heavy cutting.
One piece of faceplate and spindle design which offer rigid construction.
Low Gear ratio design (90:1) which offer high speed feed rate.
Large thru hole design which allowable large work piece going thru spindle.
Table Dia (mm / inch) 200 / 7.87
Center Height in Vertical (mm / inch) 160 / 6.3
Table Height in Horizontal (mm / inch) 165 / 6.5
Over all Height in Vertical
Without Motor Cover (mm / inch) 265 / 10.63
Thru-Hole Dia (mm / inch) 35H7 / 1.37H7
Width of T-slot (mm / inch) 12H7 / 0.47H7
Width of Guide Block (mm / inch) 18h7 / 0.71h7
Servo motor type MELDAS HF-104T
FANUC α4 i
SIEMENS 1FK7060
HEIDENHAIN QSY116C
Gear Ratio 1:90
Min. Indexing Unit degree (degree) 0.001°
Max. R.P.M. (rpm) (motor : 2000 / rpm) 22.2
Pneu. clamp force (kg•m) (P:5kg / cm2) 25
Hydro. clamp force (kg•m) (P:20kg / cm2) 50
Indexing Accuracy Class (sec.) 20"
Repeatability (sec.) Unidirectional 4"
Bidirectional 8"
Max. Machining Force (kg•m) 23
N.W. (kgs) 84
Max. Load Vertical W=125 kg
Horizontal W=250 kg
Max. Radial Load F=1100 kg
FxL=50 kg•m
FxL=100 kg•m
