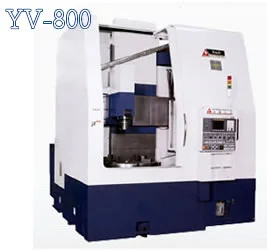

YOU JI YV-800E

ITEMS Unit YV800A
Machine capacity
Max. swing diameter mm ø 1000
Max. cutting diameter mm ø 900
Max. cutting height mm 700
Spindle
Spindle speed rpm 10~600
Spindle bearing diameter mm 330
Drilling & tapping mm N/A
Spindle nose A2-11
Turret
Turret type 10 station
Number of tools pcs 10
Tool shank size mm 32,ø 50
X-axis and Z-axis
X-axis travel mm -50;+600
Z-axis travel mm 850
X-axis rapid travel m/min 12
Z-axis rapid travel m/min 20
Motor
Spindle motor kw αP40 18.5/22
X-axis servo motor kw 4
Z-axis servo motor kw 4
Hydraulic motor kw 2.2
Coolant motor kw 0.5+1
Motor for drilling & tapping kw N/A
Measurement
LxW mm 3450x2550
Machine height mm 3670
Net weight kg 14000
Total power consumption KVA 50
