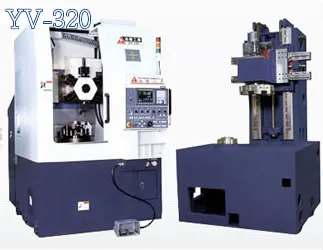

YOU JI YV320E+C

ITEMS Units YV-320E+C
Machine capacity
Max. swing diameter mm ø 600
Max. cutting diameter mm ø 450
Max. cutting height mm 300
Spindle
Spindle speed rpm 50~2000
Spindle bearing diameter mm 120
Drilling & tapping ø 20/M16(FC)
Spindle nose A2-8
Turret
Turret type V.D.I 40
Number of tools pcs 8
Tool shank size mm 32,ø 40
X-axis and Z-axis
X-axis travel mm -50;+250
Z-axis travel mm 500
X-axis rapid travel m/min 12
Z-axis rapid travel m/min 24
Motor
Spindle motor kw αP40 18.5/22
X-axis servo motor kw 1.6
Z-axis servo motor kw 3
Hydraulic motor kw 2.2
Coolant motor kw 0.5+1
Motor for drilling & tapping kw 2.2/3.7
Measurement
LxW mm 2555x1770
Machine height mm 2845
Net weight kg 6000
Total power consumption KVA 40
