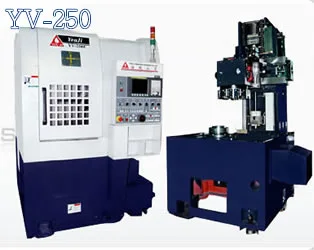

YOU JI YV250A

ITEMS Units YV250A
Machine capacity
Max. swing diameter mm ø 500
Max. cutting diameter mm ø 350
Max. cutting height mm 250
Spindle
Spindle speed rpm 50~2500
Spindle bearing diameter mm 100
Drilling & tapping N/A
Spindle nose A2-8
Turret
Turret type 6 station
Number of tools pcs 6
Tool shank size mm 32,ø40
X-axis and Z-axis
X-axis travel mm -50;+300
Z-axis travel mm 450
X-axis rapid travel m/min 12
Z-axis rapid travel m/min 24
Motor
Spindle motor kw αP22 11/15
X-axis servo motor kw 1.6
Z-axis servo motor kw 3
Hydraulic motor kw 2.2
Coolant motor kw 0.5+1
Motor for drilling & tapping kw N/A
Measurement
LxW mm 2920x1480
Machine height mm 2460
Net weight kg 4500
Total power consumption KVA 30
