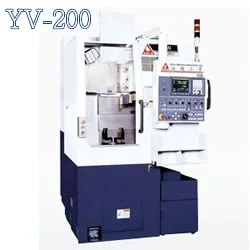

YOU JI YV-200B

ITEMS Unit YV-200B
Machine capacity
Max. swing diameter mm ø 400
Max. cutting diameter mm ø 250
Max. cutting height mm 200
Spindle
Spindle speed rpm 50~3500
Spindle bearing diameter mm 80
Drilling & tapping mm N/A
Spindle nose mm A2-6
Turret
Turret type Gang Tool
Number of tools pcs 5
Tool shank size mm 25,ø 32
X-axis and Z-axis
X-axis travel mm -135;+140
Z-axis travel mm 400
X-axis rapid travel m/min 12
Z-axis rapid travel m/min 24
Motor
Spindle motor kw α P18 9/11
X-axis servo motor kw 1.6
Z-axis servo motor kw 3
Hydraulic motor kw 2.2
Coolant motor kw 0.5
Motor for drilling & tapping kw N/A
Measurement
LxW mm 2475x1280
Machine height mm 2460
Net weight kg 3000
Total power consumption KVA 25
