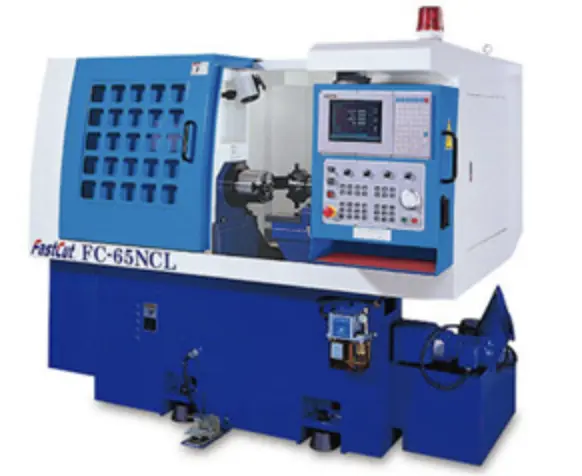

FASTCUT FC-65NCL
Have one to sell?
ConditionNew
New
Both turning and polygon cutting are carried out at the same machine.
The unique integration of CNC polygon machine with basic CNC lathe function for turning and polygon cutting are carried out at the same machine. Saving factory floor area, labor and the time for transportation and operation.
Variety polygon cutting can be performed by CNC control system and X & Z axis driven by servo motors.
Copying polygon cutting without conventional profitting attachment, unlimited contouring.
Rigid construction, high performance.
Capacity Max. turning diameter Ømm 50
Max. turning length mm 150
Distance between centers mm 200
Spindle
Max. speed rpm 4000
Spindle nose A2-6
Spindle bore Ømm 67
Bar capacity Ømm 52
Feedrate
X/Z axis rapid traverse M/min 12
Stroke X axis stroke mm 60
Z axis stroke mm 150
Turret
No. of turret unit -
Turret type servo -
O.D. tool shank mm -
I.D. tool shank Ø mm -
切角刀盤
Polygon cutter type FASTCUT
Tool size mm 16 x 16
Motors
Spindle motor KW 7.5
Servo motor, X axis KW 1
Servo motor, Z axis KW 1
Hydraulic pump HP 2
Lubrication pump W 12
Coolant pump KW 0.2
Machine size
Length mm 2970
Width mm 1800
Height mm 1930
Net weight kgs 3500
Gross weight kgs 4000
