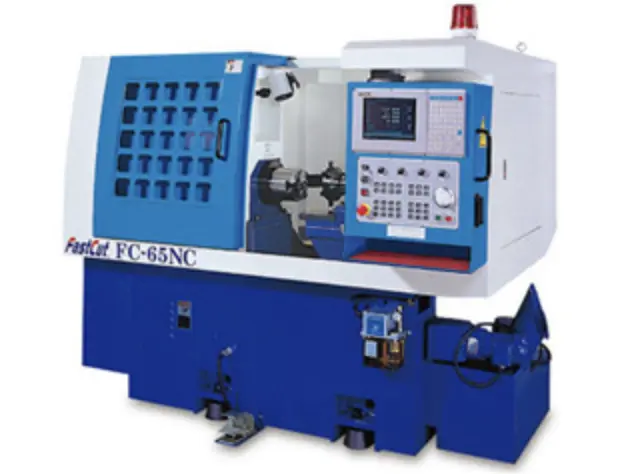

New FASTCUT FC-65NC | CNC Lathes, Horizontal, Slant bed
Have one to sell?
ConditionNew
New
Both turning and polygon cutting are carried out at the same machine.
The unique integration of CNC polygon machine with basic CNC lathe function for turning and polygon cutting are carried out at the same machine. Saving factory floor area, labor and the time for transportation and operation.
Variety polygon cutting can be performed by CNC control system and X & Z axis driven by servo motors.
Copying polygon cutting without conventional profitting attachment, unlimited contouring.
Rigid construction, high performance.
Capacity Max. turning diameter Ømm 50
Max. turning length mm 100
Distance between centers mm 200
Spindle
Max. speed rpm 500
Spindle nose A2-6
Spindle bore Ømm 65
Bar capacity Ømm 50
Feedrate
X/Z axis rapid traverse M/min 12
Stroke X axis stroke mm 60
Z axis stroke mm 165
Turret
No. of turret unit -
Turret type servo -
O.D. tool shank mm -
I.D. tool shank Ø mm -
切角刀盤
Polygon cutter type FASTCUT
Tool size mm 16 x 16
Motors
Spindle motor KW 3.75
Servo motor, X axis KW 0.6
Servo motor, Z axis KW 0.6
Hydraulic pump HP 1
Lubrication pump W 6
Coolant pump KW 0.2
Machine size
Length mm 1800
Width mm 1740
Height mm 1600
Net weight kgs 2500
Gross weight kgs 3000
