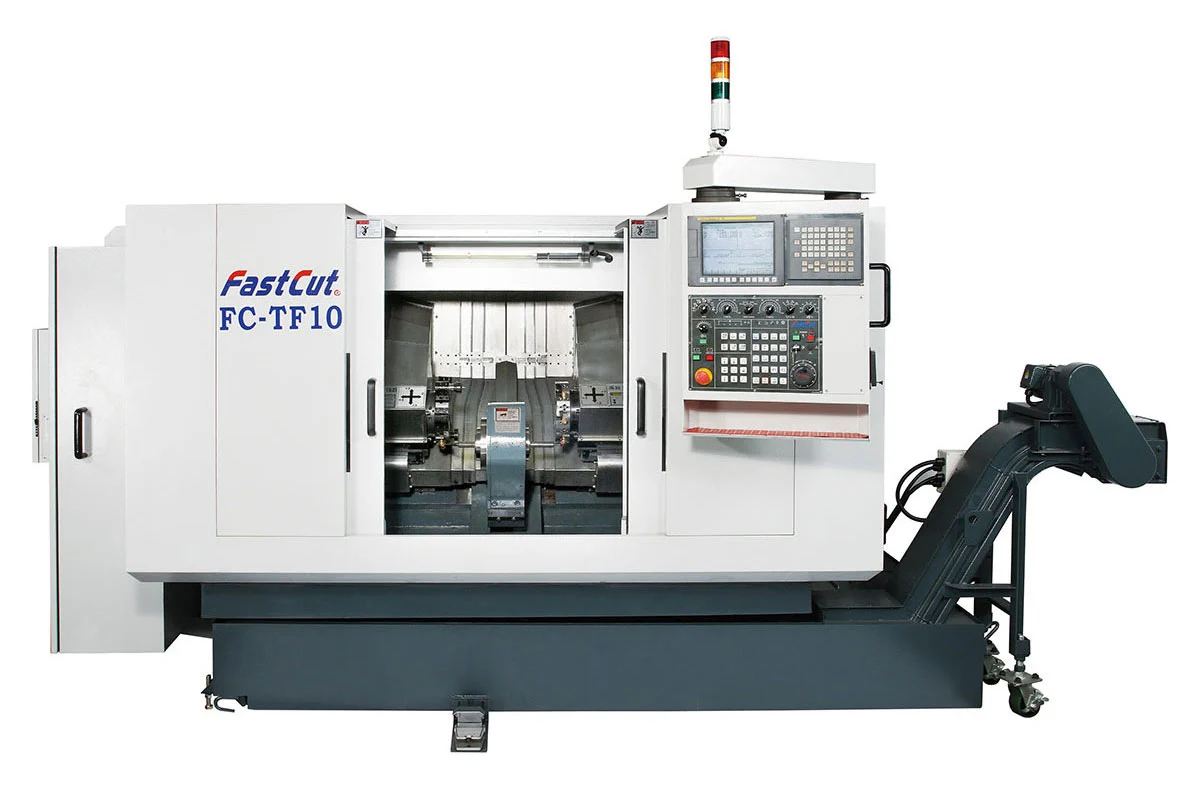

FASTCUT FC-TF10

Have one to sell?

ConditionNew

Quantity

New

Have one to sell?

Overview

Type:

CNC Lathes, Horizontal, Slant bed

Manufacturer:

Model:

FC-TF10

Condition:

Build To Order

Status:

For Sale

Single spindle, Two turrets, Twin CNC System Two turrets can operate simultaneously and carry out different cutting process on both ends.

Shaft, rod or tubes both ends cutting (O.D.&I.D.) are carried out simultaneously to obtain very high concentricity and benefit.

Special auto loading & Unloading system can be fitted to handle workpiece with unsymmetrical or special-shaped on ends.

Special spindle can be ordered for special job requirements.

Spindle
No. of spindle Unit 1
Max. speed rpm 4000

Feedrate
X/Z axis rapid traverse M/min 12
Stroke X1 axis stroke mm 100
X2 axis stroke mm 100
Z1 axis stroke mm 220
Z2 axis stroke mm 220

Turret
No. of turret unit 2
Turret type servo V8-st.
O.D. tool shank mm 220
I.D. tool shank (Max.) Ømm 25

Motors
Spindle motor KW 7.5
Servo motor, X axis KW 1
Servo motor, Z axis KW 1
Hydraulic pump HP 2
Lubrication pump W 12
Coolant pump KW 0.75

Machine size
Length mm 4030
Width mm 1920
Height mm 1980
Net weight kgs 5000
Gross weight kgs 5500
