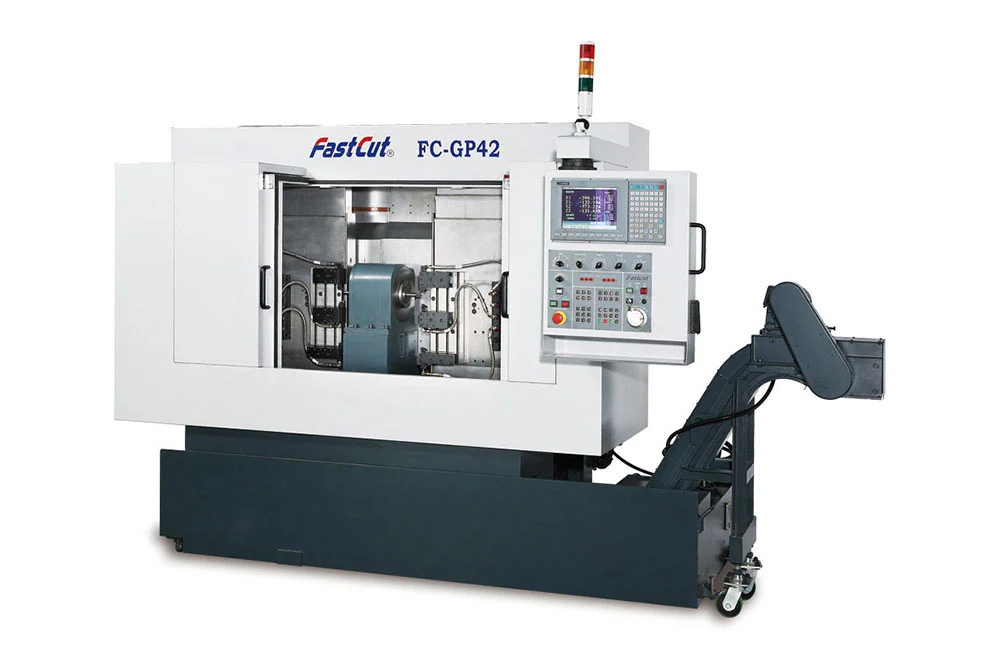

FASTCUT FC-GF42
Have one to sell?
ConditionNew
New
Single spindle, Gang type tool two turrets, Twin CNC System
Two turrets can operate simultaneously and carry out different cutting process on both ends.
Shaft, rod or tubes both ends cutting (O.D.&I.D.) are carried out simultaneously to obtain very high concentricity and benefit.
Special auto loading & Unloading system can be fitted to handle workpiece with unsymmetrical or special-shaped on ends.
Special spindle can be ordered for special job requirements.
The slant bed design is 90 degree, chip is easy away from.
SPINDLE
No. of spindle Unit 1
Max. speed rpm 4000
Feedrate
X/Z axis rapid traverse M/min. 12
Stroke X1 axis stroke mm 420
X2 axis stroke mm 420
Z1 axis stroke mm 220
Z2 axis stroke mm 220
Turret
No. of turret unit 2
Turret type servo Gang type
O.D. tool shank mm 20 x 20
I.D. tool shank (Max.) Ømm 25
Motors
Spindle motor KW 7.5
Servo motor, X axis KW 1
Servo motor, Z axis KW 1
Hydraulic pump HP 2
Lubrication pump W 12
Coolant pump KW 0.75
Machine size
Length mm 1880
Width mm 1616
Height mm 1975
Net weight kgs 4500
Gross weight kgs 5500
