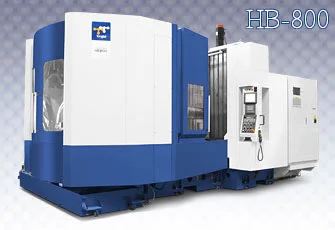

Tongtai HB-800-5AX

Have one to sell?
1-888-294-8453
barry@bwguild.com
ConditionNew
Have one to sell?

Overview

Type:
Horizontal Machining Centers
Manufacturer:
TONGTAI
Model:
HB-800-5AX
Condition:
Build To Order
Status:
For Sale
X47"1,193.8 mm
Y47"1,193.8 mm
Z40"1,016 mm
Power40 hp29.8 kW
RPM12,000 RPM12,000 RPM
# ATC120120
TaperCAT50 (HSK-A100)CAT50 (HSK-A100)
Pallet-W31.5"800.1 mm
Pallet-L31.5"800.1 mm

Capacity X/Y/Z Travel (in) 47 × 47 × 40
Table Tilt (A axis) (deg) +20 ~ -110
Table Rotation (B axis) (deg) +/- 360
Table Pallet size (in) 32 × 32
Max. work size (in) D47 × H22
Max. work weight (lbs) 1760
Feedrate Rapid X/Y/Z (ipm) 1968
Rapid A/B (rpm) 40/100
Spindle Spindle Motor (hp) 40
Spindle Speed (rpm) 12000
Spindle Taper CAT50 (HSK-A100)
ATC No. of Tools 60/90/120
Max. Tool Length (in) 24
Max. Tool Weight (lbs) 44
