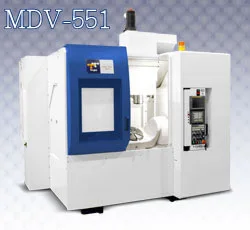

Tongtai MDV-551-5AX

Have one to sell?
1-888-294-8453
barry@bwguild.com
ConditionNew
Have one to sell?

Overview

Type:
Vertical Machining Centers (5-Axis or More)
Manufacturer:
TONGTAI
Model:
MDV551-5AX
Condition:
Build To Order
Status:
For Sale
X25"635 mm
Y21"533.4 mm
Z18"457.2 mm
# Axis55
RPM12,000 RPM12,000 RPM
# ATC1616
TaperBT40 (HSK 63)BT40 (HSK 63)
Dimensions101 × 120 × 128 (LWH)101 × 120 × 128 (LWH)
Weight24200 lbs24200 lbs

Capacity X/Y/Z axis Travel (in) 25/21/18
A-Axis Travel (deg) -20 ~ 100
C-Axis Travel (deg) 360
Spindle nose to table top (in) 8 ~ 26
Table Table Size (in) 13.8
Max. Jig dimension (in) 26.5 D × 14.8 H
Max. Load capacity (lbs) 660
Spindle Spindle taper BT40 (HSK 63)
Spindle Speed (rpm) 12000 (20000)
Feed Rapid (X/Y/Z) (ipm) 1574/1574/1574
Rapid (A/C) (deg/min) 4000/12000
ATC Tool Shank BT40 (HSK 63)
ATC capacity 16
Max. Tool length 12
Max. Tool weight 17
Machine Machine dim. (L × W × H) 101 × 120 × 128
Machine weight (lbs) 24200

Overview

Type:
Vertical Machining Centers (5-Axis or More)
Manufacturer:
TONGTAI
Model:
MDV551-5AX
Condition:
Build To Order
Status:
For Sale

Specifications

Imperial

X25"
Y21"
Z18"
# Axis5
RPM12,000 RPM
# ATC16
TaperBT40 (HSK 63)
Dimensions101 × 120 × 128 (LWH)
Weight24200 lbs

Capacity X/Y/Z axis Travel (in) 25/21/18
A-Axis Travel (deg) -20 ~ 100
C-Axis Travel (deg) 360
Spindle nose to table top (in) 8 ~ 26
Table Table Size (in) 13.8
Max. Jig dimension (in) 26.5 D × 14.8 H
Max. Load capacity (lbs) 660
Spindle Spindle taper BT40 (HSK 63)
Spindle Speed (rpm) 12000 (20000)
Feed Rapid (X/Y/Z) (ipm) 1574/1574/1574
Rapid (A/C) (deg/min) 4000/12000
ATC Tool Shank BT40 (HSK 63)
ATC capacity 16
Max. Tool length 12
Max. Tool weight 17
Machine Machine dim. (L × W × H) 101 × 120 × 128
Machine weight (lbs) 24200
