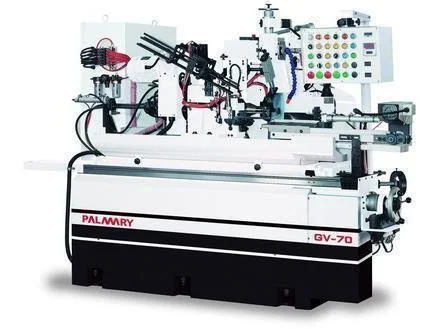

New PALMARY GV-70 | Valve Seat & Guide Machines
Have one to sell?
ConditionNew
New
MACHINE SPECIFICATIONS GV-70
Max. Diameter of Workpiece Ø70 mm
Wheelhead Swivel Angle 45°～60°
Grinding Wheel Size 405 x 45 x 152.4
Grinding Wheel Speed 2700 m/min
Work Spindle Speed 80～480 rpm
Table Swiveling Angle 0°～12.5°
Spindle Elastic Collet Size Ø5～Ø14 mm
Max. Length of Workpiece 150 mm
Wheel Spindle Motor 5HP 4P
Work Spindle Motor 1/2HP 4P
Spindle Lubricating Pump Motor 1/4HP 4P
Hydraulic Oil Pump Drive Motor 1HP 4P
Wheel Lubricant Tank Capacity 12 L
Hydraulic Tank Capacity 65 L
Coolant Tank Capacity 150 L
